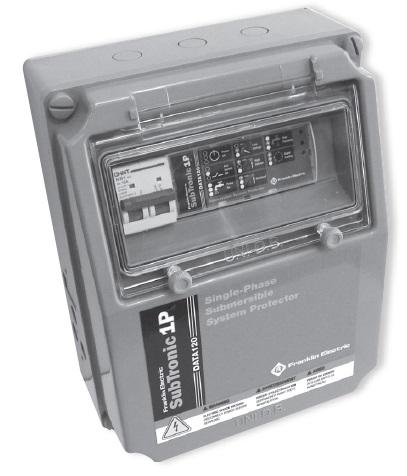

Franklin Sub Tronic Single Phase Submersible System Protector
Technical Specifications and Model Parameters
The SubTronic®1P range of control boxes has been designed as drop-in replacements for conventional Single Phase motor control boxes. As such, it will
work with standard pressure/flow switches adding intelligence & protection to the borehole water system.
Model Parameters
|
Motor Rating (kW) |
Type ² 1phase / 230V 50 HZ |
Model Number¹ |
0.37 |
ST037CSR |
830008833 |
0.75 |
ST075CSR |
830008835 |
Current Ratings (230V/50Hz)
|
Motor Rating (kW) |
Nom. Current³ (A) |
Max Current⁴ (A) |
Start Capicitor 330V (uF) |
0.37 |
ST037CSR |
13.7 |
44-53 |
0.75 |
ST075CSR |
27.8 |
86-103 |
