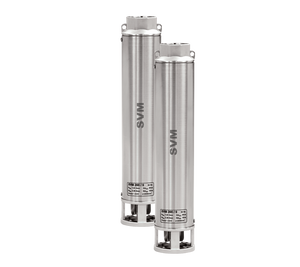

Franklin Electric SVM 100 Series 4" Submersible Borehole Pumps - Pump Only
Performance
- Flow rates from 30 l/min to 400 l/min
- Heads up to 290m
Features
- Stainless steel motor adaptor and discharge head for increased
strength and durability. - Polycarbonate impellers, stainless steel bowls and Noryl® diffusers reduce possibility of seizing.
- Built-in check valve to protect the pump against water hammer.
- Impeller design incorporates built-in up-thrust protection.
- Features an 11mm across flats shaft.
Package Content
Pump Only:
This package consists of a pump only.
|
|
PERFORMANCE DATA |
||||||||||
Capacity | |||||||||||
Model |
Motor kW |
Motor Amps |
l/min |
0 |
30 |
45 |
60 |
80 |
90 |
100 |
|
mᶾ/h |
0,0 |
1,8 |
2,7 |
3,6 |
4,8 |
5,4 |
6,0 |
||||
230V |
400V |
l/sec |
0,0 |
0,50 |
0,75 |
1,00 |
1,33 |
1,50 |
1,67 |
||
SVM 10004/037 |
0,37 |
4,0 |
1,1 |
Head (Metres) |
26 |
23 |
22 |
19 |
15 |
12 |
8 |
SVM 10007/055 |
0,55 |
6,0 |
1,6 |
44 |
40 |
36 |
32 |
23 |
17 |
11 |
|
SVM 10010/075 |
0,75 |
7,3 |
2,1 |
65 |
59 |
54 |
47 |
35 |
27 |
18 |
|
SVM 10014/110 |
1,10 |
8,9 |
3,0 |
92 |
84 |
77 |
69 |
51 |
39 |
25 |
|
SVM 10018/150 |
1,50 |
11,1 |
4,0 |
119 |
109 |
100 |
90 |
66 |
51 |
33 |
|
SVM 10027/220 |
2,20 |
15,9 |
5,9 |
179 |
164 |
151 |
133 |
99 |
78 |
54 |
|
SVM 10032/300 |
3,00 |
- |
7,8 |
211 |
197 |
181 |
159 |
118 |
93 |
66 |
|
SVM 10040/370 |
3,70 |
- |
9,1 |
268 |
246 |
225 |
195 |
138 |
103 |
71 |
|
SVM 10044/400 |
4,00 |
- |
10,0 |
292 |
272 |
247 |
214 |
150 |
120 |
85 |
|
DIMENSION - 230 VOLT MOTOR | ||||||||
Model |
Diameter mm |
230 Volts |
||||||
Length mm |
Mass Kg |
|||||||
ø=C |
øMAX |
MOTOR |
PUMP |
TOTAL |
MOTOR |
PUMP |
TOTAL |
|
SVM 10004/037 |
93 |
95 |
278 |
242 |
520 |
8,6 |
2,9 |
11,5 |
SVM 10007/055 |
93 |
95 |
343 |
270 |
613 |
9,5 |
3,5 |
13,0 |
SVM 10010/075 |
93 |
95 |
411 |
298 |
709 |
10,9 |
4,2 |
15,1 |
SVM 10014/110 |
93 |
95 |
498 |
449 |
947 |
17,3 |
5,1 |
22,4 |
SVM 10018/150 |
93 |
95 |
588 |
487 |
1075 |
19,5 |
5,9 |
25,4 |
SVM 10027/220 |
93 |
95 |
784 |
564 |
1384 |
25,0 |
7,2 |
32,2 |
SVM 10032/300 |
93 |
95 |
Not available in 230 Volt x 1 phase |
|||||
SVM 10040/370 |
93 |
95 |
||||||
SVM 10044/400 |
93 |
95 |
||||||
DIMENSION - 400 VOLT MOTOR | ||||||||
Model |
Diameter mm |
400 Volts |
||||||
Length mm |
Mass Kg |
|||||||
ø=C |
øMAX |
MOTOR |
PUMP |
TOTAL |
MOTOR |
PUMP |
TOTAL |
|
SVM 10004/037 |
93 |
95 |
278 |
242 |
520 |
8,2 |
2,9 |
11,1 |
SVM 10007/055 |
93 |
95 |
343 |
270 |
613 |
9,5 |
3,5 |
13,0 |
SVM 10010/075 |
93 |
95 |
411 |
298 |
709 |
10,9 |
4,2 |
15,1 |
SVM 10014/110 |
93 |
95 |
498 |
402 |
900 |
15,0 |
5,1 |
20,1 |
SVM 10018/150 |
93 |
95 |
588 |
449 |
1037 |
18,3 |
5,9 |
23,2 |
SVM 10027/220 |
93 |
95 |
784 |
487 |
1271 |
19,5 |
7,2 |
26,7 |
SVM 10032/300 |
93 |
95 |
953 |
564 |
1517 |
25,0 |
9,2 |
34,2 |
SVM 10040/370 |
93 |
95 |
1128 |
564 |
1692 |
25,0 |
10,5 |
35,5 |
SVM 10044/400 |
93 |
95 |
1219 |
627 |
1846 |
27,7 |
11,8 |
39,5 |
